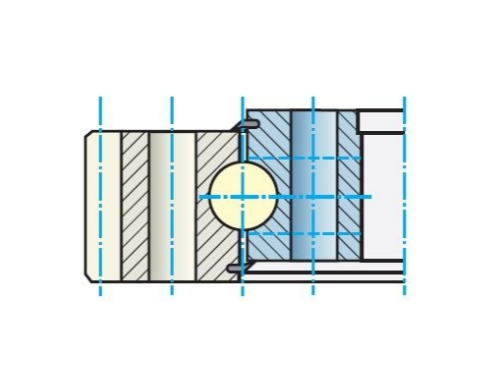

Rollix slewing bearing family 01-External gear four point contact ball
Family 01
Rollix slewing bearing family 02-Internal gear four point contact ball
Family 02

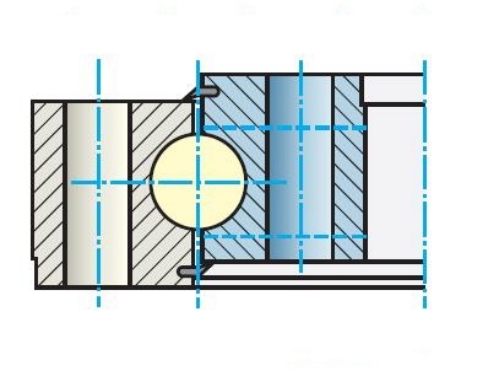

Rollix slewing bearing family 03-Ungeared four point contact ball
Family 03

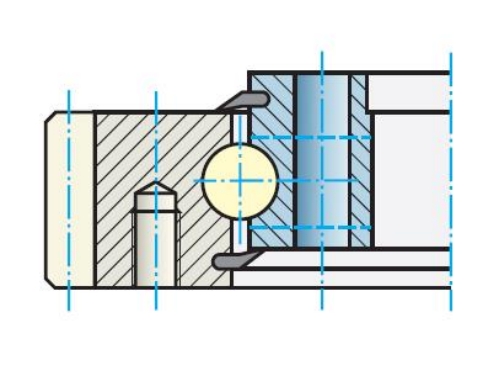

Rollix slewing bearing family 31-34-37-External gear four point contact ball
Family 31-34-37

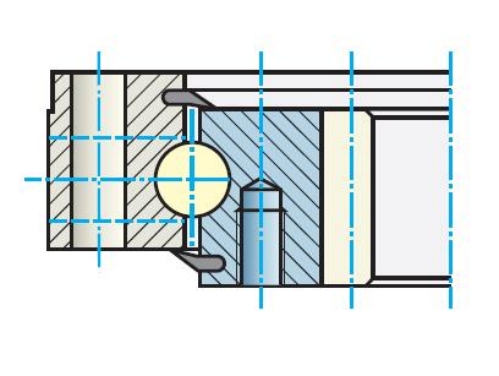

Rollix slewing bearing family 32-35-38-Internal gear four point contact ball
Family 32-35-38

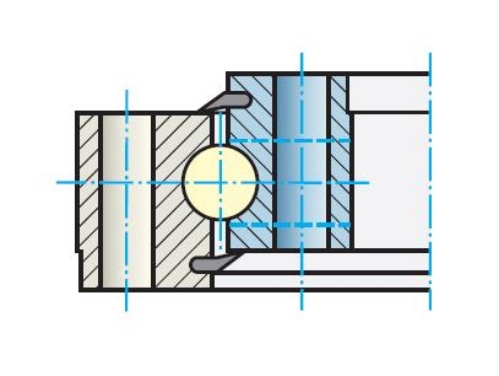

Rollix slewing bearing family 33-36-39-Ungeared four point contact ball
Family 33-36-39

Series 06

Click here to add your own text

Gearless

Bearing No. Slewing Bearing Dimension Fixing holes Gear Data
Product Details ID OD H Di do OH IH No Ni SHO SHI Lo Li m z  Weight
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
060.22.0370.301.11.1504 289 456 59 371 369 50 50 16 16 17.5 17.5 425 320 50 50 35
060.22.0505.000.11.1503 425 585 58 506 504 49 49 22 22 17.5 17.5 555 455 49 49 44
060.20.0414.575.01.1403 343.5 484.5 56 576 576 45.5 45.5 24 24 13.5 13.5 460 368 45.5 45.5 29
060.20.0414.500.01.1503 342 486 56 657 657 45.5 45.5 24 24 13.5 13.5 460 368 45.5 45.5 29
060.25.0475.000.11.1504 385 565 64 476 474 57 57 30 30 16 16 535 415 57 57 50
060.20.0544.575.01.1403 473.5 614.5 56 556 554 45.5 45.5 32 32 13.5 13.5 590 498 45.5 45.5 37
060.20.0544.500.01.1503 472 616 56 548 552 45.5 45.5 32 32 13.5 13.5 590 498 45.5 45.5 37
060.25.0555.000.11.1504 460 650 63 681 678 54 54 30 30 16 16 614 496 54 54 61
060.30.0550.100.11.1504 450 650 75 807 803 65 65 24 24 20 20 615 485 65 65 73
060.22.0575.502.11.1503 500 655 62 412.5 415.5 49 49 12 12 M16 M16 625 525 49 49 52
060.20.0644.575.01.1403 573.5 714.5 56 542.5 545.5 45.5 45.5 36 36 13.5 13.5 690 598 45.5 45.5 44
060.20.0644.500.01.1503 572 716 56 642.5 645.5 45.5 45.5 36 36 13.5 13.5 690 598 45.5 45.5 44
060.22.0660.001.11.1503 580 740 58 742.5 745.5 49 49 30 30 17.5 17.5 710 610 49 49 59
060.35.0680.000.11.1503 560 800 82 842.5 845.5 73 73 20 20 20 20 755 605 73 73 131
060.20.0744.575.01.1403 673.5 814.5 56 412.5 415.5 45.5 45.5 40 40 13.5 13.5 790 698 45.5 45.5 52
060.20.0744.500.01.1503 672 816 56 542.5 545.5 45.5 45.5 40 40 13.5 13.5 790 698 45.5 45.5 52
060.20.0844.575.01.1403 773.5 914.5 56 642.5 645.5 45.5 45.5 40 40 13.5 13.5 890 798 45.5 45.5 60
060.20.0844.500.01.1503 772 916 56 742.5 745.5 45.5 45.5 40 40 13.5 13.5 890 798 45.5 45.5 60
060.45.0805.001.11.1504 662 948 99 842.5 845.5 90 90 30 30 24 24 896 714 90 90 215
060.25.0855.575.11.1403 757 953 63 856 854 54 54 28 28 22 22 915 795 54 54 100
060.25.0855.500.11.1503 755 955 63 856 854 54 54 28 28 22 22 915 795 54 54 100
060.20.0944.575.01.1403 873.5 1014.5 56 942.5 945.5 45.5 45.5 44 44 13.5 13.5 990 898 45.5 45.5 67
060.20.0944.500.01.1503 872 1016 56 1092.5 1095.5 45.5 45.5 44 44 13.5 13.5 990 898 45.5 45.5 67
060.25.0955.575.11.1403 857 1053 63 942.5 945.5 54 54 30 30 22 22 1015 895 54 54 113
060.25.0955.500.11.1503 855 1055 63 1092.5 1095.5 54 54 30 30 22 22 1015 895 54 54 113
060.25.1055.575.11.1403 957 1153 63 956 954 54 54 30 30 22 22 1115 995 54 54 124
060.25.1055.500.11.1503 955 1155 63 1056 1054 54 54 30 30 22 22 1115 995 54 54 124
060.20.1094.575.01.1403 1023.5 1164.5 56 1156 1154 45.5 45.5 48 48 13.5 13.5 1140 1048 45.5 45.5 77
060.20.1094.500.01.1503 1022 1166 56 1256 1254 45.5 45.5 48 48 13.5 13.5 1140 1048 45.5 45.5 77
060.25.1155.575.11.1403 1057 1253 63 1356 1354 54 54 36 36 22 22 1215 1095 54 54 139
060.25.1155.500.11.1503 1055 1255 63 1456 1454 54 54 36 36 22 22 1215 1095 54 54 139
060.25.1255.575.11.1403 1157 1353 63 956 954 54 54 42 42 22 22 1315 1195 54 54 148
060.25.1255.500.11.1503 1155 1355 63 1056 1054 54 54 42 42 22 22 1315 1195 54 54 148
060.25.1355.575.11.1403 1257 1453 63 1156 1154 54 54 42 42 22 22 1415 1295 54 54 161
060.25.1355.500.11.1503 1255 1455 63 1256 1254 54 54 42 42 22 22 1415 1295 54 54 161
060.25.1455.575.11.1403 1357 1553 63 1356 1354 54 54 48 48 22 22 1515 1395 54 54 171
060.25.1455.500.11.1503 1355 1555 63 1456 1454 54 54 48 48 22 22 1515 1395 54 54 171

External Gear

Bearing No. Slewing Bearing Dimension Fixing holes Gear Data
Product Details ID OD H Di do OH IH No Ni SHO SHI Lo Li m z  Weight
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
061.20.0400.100.11.1503 325 499 55 – – 46 46 16 16 13.5 13.5 448 352 5 97 35
061.20.0400.101.21.1503 325 499 55 – – 46 46 16 16 13.5 13.5 448 352 5 97 35
061.20.0414.500.01.1503 342 504 56 – – 45.5 45.5 20 24 13.5 13.5 455 368 5 99 31
061.20.0414.575.01.1403 343.5 504 56 – – 45.5 45.5 20 24 13.5 13.5 455 368 5 99 31
061.20.0450.100.11.1503 369 554 55 – – 46 46 16 16 15.5 15.5 500 400 5 108 39
061.20.0450.101.21.1503 369 554 55 – – 46 46 16 16 15.5 15.5 500 400 5 108 39
061.20.0544.500.01.1503 472 640.8 56 – – 45.5 45.5 28 32 13.5 13.5 585 498 6 105 43
061.20.0544.575.01.1403 473.5 640.8 56 – – 45.5 45.5 28 32 13.5 13.5 585 498 6 105 43
061.20.0560.100.11.1503 479 670.8 55 – – 46 46 20 20 15.5 15.5 610 510 6 109 53
061.20.0560.101.21.1503 479 670.8 55 – – 46 46 20 20 15.5 15.5 610 510 6 109 53
061.20.0644.500.01.1503 572 742.8 56 – – 45.5 45.5 32 36 13.5 13.5 685 598 6 122 52
061.20.0644.575.01.1403 573.5 742.8 56 – – 45.5 45.5 32 36 13.5 13.5 685 598 6 122 52
061.20.0630.100.11.1503 543 742.8 55 – – 46 46 20 20 17.5 17.5 682 578 6 121 61
061.20.0630.101.21.1503 543 742.8 55 – – 46 46 20 20 17.5 17.5 682 578 6 121 61
061.20.0710.100.11.1503 623 820.8 55 – – 46 46 24 24 17.5 17.5 762 658 6 134 67
061.20.0710.101.21.1503 623 820.8 55 – – 46 46 24 24 17.5 17.5 762 658 6 134 67
061.20.0744.500.01.1503 672 838.8 56 – – 45.5 45.5 36 40 13.5 13.5 785 698 6 138 59
061.20.0744.575.01.1403 673.5 838.8 56 – – 45.5 45.5 36 40 13.5 13.5 785 698 6 138 59
061.25.0764.103.11.1504 670 862.8 82 – – 65 61 24 24 17.5 17.5 800 706 6 142 98
061.25.0764.106.21.1504 670 862.8 82 – – 65 61 24 24 17.5 17.5 800 706 6 142 98
061.25.0764.600.11.1503 671 886.8 63 – – 54 54 24 24 17.5 17.5 823 706 6 145 95
061.25.0764.601.21.1503 671 886.8 63 – – 54 54 24 24 17.5 17.5 823 706 6 145 95
061.20.0844.500.01.1503 772 950.4 56 – – 45.5 45.5 36 40 13.5 13.5 885 798 8 117 71
061.20.0844.575.01.1403 773.5 950.4 56 – – 45.5 45.5 36 40 13.5 13.5 885 798 8 117 71
061.25.0855.500.11.1503 755 997.2 80 – – 71 54 28 28 22 22 916 795 9 109 141
061.25.0855.575.11.1403 757 997.2 80 – – 71 54 28 28 22 22 916 795 9 109 141
061.20.0944.500.01.1503 872 1046.4 56 942.5 945.5 45.5 45.5 40 44 13.5 13.5 985 898 8 129 77
061.20.0944.575.01.1403 873.5 1046.4 56 1092.5 1095.5 45.5 45.5 40 44 13.5 13.5 985 898 8 129 77
061.25.0980.107.11.1504 886 1078.4 79 942.5 947 67 58 30 30 17.5 17.5 1015 922 8 133 123
061.25.0980.108.21.1504 886 1078.4 79 1092.5 1097 67 58 30 30 17.5 17.5 1015 922 8 133 123
061.25.0955.500.11.1503 855 1096.2 80 956 954 71 54 30 30 22 22 1016 895 9 120 158
061.25.0955.575.11.1403 857 1096.2 80 1056 1054 71 54 30 30 22 22 1016 895 9 120 158
061.25.0980.890.11.1503 887 1110.4 63 1156 1154 54 54 30 30 17.5 17.5 1039 922 8 136 124
061.25.0980.891.21.1503 887 1110.4 63 1256 1254 54 54 30 30 17.5 17.5 1039 922 8 136 124
061.25.1055.500.11.1503 955 1198 80 1356 1354 71 54 30 30 22 22 1116 995 10 118 172
061.25.1055.575.11.1403 957 1198 80 1456 1454 71 54 30 30 22 22 1116 995 10 118 172
061.20.1094.500.01.1503 1022 1198.4 56 956 955 45.5 45.5 44 48 13.5 13.5 1135 1048 8 148 91
061.20.1094.575.01.1403 1023.5 1198.4 56 1056 1055 45.5 45.5 44 48 13.5 13.5 1135 1048 8 148 91
061.25.1120.000.11.1504 1013 1278 79 1156 1155 70 54 30 30 22 22 1183 1057 10 125 182
061.25.1120.001.21.1504 1013 1278 79 1256 1255 70 54 30 30 22 22 1183 1057 10 125 182
061.25.1155.500.11.1503 1055 1298 80 1356 1355 71 54 36 36 22 22 1216 1095 10 128 190
061.25.1155.575.11.1403 1057 1298 80 1456 1455 71 54 36 36 22 22 1216 1095 10 128 190
061.30.1180.000.11.1504 1068 1338 79 981 979 70 63 36 36 22 22 1248 1112 10 131 227
061.30.1180.001.21.1504 1068 1338 79 981 979 70 63 36 36 22 22 1248 1112 10 131 227
061.25.1255.500.11.1503 1155 1398 80 981 979 71 54 42 42 22 22 1316 1195 10 138 204
061.25.1255.575.11.1403 1157 1398 80 981 979 71 54 42 42 22 22 1316 1195 10 138 204
061.25.1250.100.11.1504 1143 1408 79 1121 1119 70 54 36 36 22 22 1313 1187 10 138 221
061.25.1250.101.21.1504 1143 1408 79 1121 1119 70 54 36 36 22 22 1313 1187 10 138 221
061.30.1320.000.11.1504 1208 1497.6 89 1251 1249 80 63 42 42 22 22 1388 1252 12 122 298
061.30.1320.001.21.1504 1208 1497.6 89 1251 1249 80 63 42 42 22 22 1388 1252 12 122 298
061.25.1355.500.11.1503 1255 1498 80 1181 1178 71 54 42 42 22 22 1416 1295 10 148 222
061.25.1355.575.11.1403 1257 1498 80 1181 1178 71 54 42 42 22 22 1416 1295 10 148 222
061.40.1400.000.19.1504 1266 1593.6 94 1321 1318 85 81 36 36 26 26 1482 1318 12 130 404
061.40.1400.001.29.1504 1266 1593.6 94 1321 1318 85 81 36 36 26 26 1482 1318 12 130 404
061.25.1455.500.11.1503 1355 1598 80 1501 1498 71 54 48 48 22 22 1516 1395 10 158 236
061.25.1455.575.11.1403 1357 1598 80 1501 1498 71 54 48 48 22 22 1516 1395 10 158 236
061.30.1500.200.11.1504 1388 1677.6 89 1401 1398 80 63 48 48 22 22 1568 1342 12 137 338
061.30.1500.201.21.1523 1388 1677.6 89 1401 1398 80 63 48 48 22 22 1568 1342 12 137 338
061.40.1600.008.19.1503 1466 1803.2 94 1601 1598 85 81 40 40 26 26 1682 1518 14 126 479
061.40.1600.009.29.1503 1466 1803.2 94 1601 1598 85 81 40 40 26 26 1682 1518 14 126 479
061.40.1800.013.19.1503 1666 1999.2 94 1801 1798 85 81 44 44 26 26 1882 1718 14 140 531
061.40.1800.014.29.1503 1666 1999.2 94 1801 1798 85 81 44 44 26 26 1882 1718 14 140 531
061.50.1900.001.49.1504 1729 2139.2 109 1902 1898 100 99 36 36 33 33 2005 1795 14 150 820
061.50.2130.001.49.1504 1959 2380.8 109 2132 2128 100 99 48 48 33 33 2235 2025 16 146 931
061.50.2355.001.49.1504 2184 2604.8 109 – – 100 99 54 54 33 33 2460 2250 16 160 1024
061.50.2645.001.49.1504 2474 2892.8 109 – – 100 99 60 60 33 33 2750 2540 16 178 1142

Internal Gear

Bearing No. Slewing Bearing Dimension Fixing holes Gear Data
Product Details ID OD H Di do OH IH No Ni SHO SHI Lo Li m z  Weight
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
062.20.0400.000.11.1503 300 475 55 545.5 542.5 46 46 16 16 13.5 13.5 448 352 5 61 33
062.20.0400.001.21.1503 300 475 55 645.5 642.5 46 46 16 16 13.5 13.5 448 352 5 61 33
062.20.0414.575.01.1403 326.5 484.5 56 745.5 742.5 45.5 45.5 24 24 13.5 13.5 460 375 5 67 31
062.20.0414.500.01.1503 326.5 486 56 415.5 412.5 45.5 45.5 24 24 13.5 13.5 460 375 5 67 31
062.20.0450.000.11.1503 345 531 55 845.5 842.5 46 46 16 16 15.5 15.5 500 400 5 70 38
062.20.0450.001.21.1503 345 531 55 415.5 411 46 46 16 16 15.5 15.5 500 400 5 70 38
062.20.0544.575.01.1403 445.2 614.5 56 545.5 541 45.5 45.5 32 32 13.5 13.5 590 505 6 76 42
062.20.0544.500.01.1503 445.2 616 56 645.5 641 45.5 45.5 32 32 13.5 13.5 590 505 6 76 42
062.20.0560.000.11.1503 450 641 55 745.5 741 46 46 20 20 15.5 15.5 610 510 6 76 51
062.20.0560.001.21.1503 450 641 55 845.5 841 46 46 20 20 15.5 15.5 610 510 6 76 51
062.20.0644.575.01.1403 547.2 714.5 56 854 856 45.5 45.5 36 36 13.5 13.5 690 605 6 93 50
062.20.0644.500.01.1503 547.2 716 56 854 855 45.5 45.5 36 36 13.5 13.5 690 605 6 93 50
062.20.0630.000.11.1503 516 717 55 885 887 46 46 20 20 17.5 17.5 682 578 6 87 59
062.20.0630.001.21.1503 516 717 55 885 887 46 46 20 20 17.5 17.5 682 578 6 87 59
062.20.0710.000.11.1503 594 797 55 399 401 46 46 24 24 17.5 17.5 762 658 6 100 68
062.20.0710.001.21.1503 594 797 55 399 401 46 46 24 24 17.5 17.5 762 658 6 100 68
062.20.0744.575.01.1403 649.2 814.5 56 449 451 45.5 45.5 40 40 13.5 13.5 790 705 6 110 58
062.20.0744.500.01.1503 649.2 816 56 449 451 45.5 45.5 40 40 13.5 13.5 790 705 6 110 58
062.20.0844.575.01.1403 737.6 914.5 56 559 561 45.5 45.5 40 40 13.5 13.5 890 805 8 94 69
062.20.0844.500.01.1503 737.6 916 56 559 561 45.5 45.5 40 40 13.5 13.5 890 805 8 94 69
062.25.0855.575.11.1403 710 953 80 629 631 54 71 28 28 22 22 915 794 10 73 133
062.25.0855.500.11.1503 710 955 80 629 631 54 71 28 28 22 22 915 794 10 73 133
062.25.0886.106.11.1504 784 980 77 709 711 56 67 36 36 17.5 17.5 944 850 8 100 109
062.25.0886.109.21.1504 784 980 77 709 711 56 67 36 36 17.5 17.5 944 850 8 100 109
062.25.0886.800.11.1504 752 980 63 885 887 54 54 36 36 17.5 17.5 944 827 8 95 111
062.25.0886.801.21.1504 752 980 63 885 887 54 54 36 36 17.5 17.5 944 827 8 95 111
062.20.0944.575.01.1403 841.6 1014.5 56 945.5 942.5 45.5 45.5 44 44 13.5 13.5 990 905 8 107 76
062.20.0944.500.01.1503 841.6 1016 56 1095.5 1092.5 45.5 45.5 44 44 13.5 13.5 990 905 8 107 76
062.25.0955.575.11.1403 810 1053 80 945.5 941 54 71 30 30 22 22 1015 894 10 83 150
062.25.0955.500.11.1503 810 1055 80 1095.5 1091 54 71 30 30 22 22 1015 894 10 83 150
062.25.1055.575.11.1403 910 1153 80 954 956 54 71 30 30 22 22 1115 994 10 93 166
062.25.1055.500.11.1503 910 1155 80 1054 1056 54 71 30 30 22 22 1115 994 10 93 166
062.20.1094.575.01.1403 985.6 1164.5 56 1154 1156 45.5 45.5 48 48 13.5 13.5 1140 1055 8 125 91
062.20.1094.500.01.1503 985.6 1166 56 1254 1256 45.5 45.5 48 48 13.5 13.5 1140 1055 8 125 91
062.25.1077.890.11.1503 930 1169 63 1354 1356 54 54 36 36 17.5 17.5 1144 1017 10 94 140
062.25.1077.891.21.1503 930 1169 63 1454 1456 54 54 36 36 17.5 17.5 1144 1017 10 94 140
062.25.1077.308.11.1504 960 1170 84 954 955 64 66 36 36 17.5 17.5 1134 1040 10 98 148
062.25.1077.304.21.1504 960 1170 84 1054 1055 64 66 36 36 17.5 17.5 1134 1040 10 98 148
062.30.1120.000.11.1504 960 1232 79 1154 1155 63 70 36 36 22 22 1188 1052 10 97 206
062.30.1120.001.21.1504 960 1232 79 1254 1255 63 70 36 36 22 22 1188 1052 10 97 206
062.25.1155.575.11.1403 1010 1253 80 1354 1355 54 71 36 36 22 22 1215 1094 10 103 183
062.25.1155.500.11.1503 1010 1255 80 1454 1455 54 71 36 36 22 22 1215 1094 10 103 183
062.25.1180.000.11.1504 1020 1287 69 1076 1078 54 60 36 36 22 22 1243 1117 10 103 185
062.25.1180.001.21.1504 1020 1287 69 1076 1078 54 60 36 36 22 22 1243 1117 10 103 185
062.25.1255.575.11.1403 1110 1353 80 1076 1078 54 71 42 42 22 22 1315 1194 10 113 198
062.25.1255.500.11.1503 1110 1355 80 1076 1078 54 71 42 42 22 22 1315 1194 10 113 198
062.30.1250.000.11.1504 1090 1362 79 1179 1181 63 70 40 40 22 22 1318 1182 10 110 231
062.30.1250.001.21.1504 1090 1362 79 1179 1181 63 70 40 40 22 22 1318 1182 10 110 231
062.25.1355.575.11.1403 1210 1453 80 1118 1121 54 71 42 42 22 22 1415 1294 10 123 215
062.25.1355.500.11.1503 1210 1455 80 1118 1121 54 71 42 42 22 22 1415 1294 10 123 215
062.30.1400.000.11.1504 1224 1512 89 1248 1251 63 80 44 44 22 22 1468 1332 12 103 296
062.30.1400.001.21.1504 1224 1512 89 1248 1251 63 80 44 44 22 22 1468 1332 12 103 296
062.25.1455.575.11.1403 1310 1553 80 1398 1401 54 71 48 48 22 22 1515 1394 10 133 229
062.25.1455.500.11.1503 1310 1555 80 1398 1401 54 71 48 48 22 22 1515 1394 10 133 229
062.40.1500.000.19.1504 1308 1634 94 1598 1601 81 85 40 40 26 26 1582 1418 12 110 410
062.40.1500.001.29.1504 1308 1634 94 1598 1601 81 85 40 40 26 26 1582 1418 12 110 410
062.30.1600.000.11.1504 1428 1712 89 1498 1501 63 80 48 48 22 22 1668 1532 12 120 334
062.30.1600.001.21.1504 1428 1712 89 1498 1501 63 80 48 48 22 22 1668 1532 12 120 334
062.40.1700.007.19.1503 1498 1834 94 1698 1701 81 85 44 44 26 26 1782 1618 14 108 475
062.40.1700.008.29.1503 1498 1834 94 1698 1701 81 85 44 44 26 26 1782 1618 14 108 475
062.50.1800.001.49.1504 1554 1971 109 1798 1802 99 100 36 36 33 33 1905 1695 14 112 762
062.50.2000.001.49.1504 1764 2171 109 1998 2002 99 100 40 40 33 33 2105 1895 14 127 843
062.50.2240.001.49.1504 1984 2411 109 2238 2242 99 100 48 48 33 33 2345 2135 14 125 961
062.50.2490.001.49.1504 2240 2661 109 2488 2492 99 100 54 54 33 33 2595 2385 16 141 1053
062.50.2800.001.49.1504 2544 2971 109 2798 2802 99 100 60 60 33 33 2905 2695 16 160 1205

Family 01

Click here to add your own text

Bearing No. Slewing Bearing Dimension Fixing holes Gear Data
Product Details ID OD H DL OH IH No Ni SHO SHI Lo Li m z  Weight
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
01 0181 02 125 244 25 181 25 25 24 (20-1) 11 11 214 144.5 2 120 6
01 0235 00 169 318 45 235 37 34 20 (20-1) 13.5 M12 275 195 3 104 12
01 0289 06 210 379 45 289 40 40 24 (24-1) 13.5 13.5 335 240 4 92 20
01 0342 00 265 440 50 342 44 44 16 16 17.5 17.5 390 295 4.5 95 28
01 0422 01 323 529 54 422 50 50 20 20 17.5 17.5 476 368 5 103 46
01 0555 01 455 689 74 555 64 64 30 (30-1) 17.5 17.5 620 490 6 112 89
01 0626 00 516 774 82 626 72 66 24 24 22 22 692 560 8 94 120
01 0765 01 679 863 82 765 68 65 24 24 M16 17.5/M16 800 706 6 142 103
01 0880 00 770 1022 82 880 72 66 36 36 22 22 945 815 8 125 161
01 0947 00 833 1094 82 947 72 66 36 36 22 22 1015 880 8 134 181
01 1050 00 930 1218 98 1050 88 80 40 40 22 22 1125 975 10 119 280
01 1180 00 1045 1358 98 1180 88 80 40 40 26 26 1260 1100 10 133 328
01 1295 01 1200 1431 63 1295 54 54 24 24 17.5 17.5 1354 1236 8 177 183
01 1410 00 1270 1605 110 1410 100 90 48 48 26 26 1495 1325 12 131 476
01 1595 00 1500 1727 63 1595 54 54 24 24 18 18 1654 1536 8 214 214
01 1712 00 1565 1929 110 1712 100 90 48 48 30 30 1800 1625 14 135 624
01 1845 02 1750 1975 63 1845 54 54 30 30 17.5 17.5 1904 1786 8 245 245
01 1895 00 1720 2140 130 1895 120 110 48 48 33 33 1996 1794 16 131 998
01 2040 00 1950 2165 68 2040 59 59 36 36 17.5 17.5 2090 1985 8 269 278
01 2202 00 2091 2342 70 2202 62 62 36 36 22 22 2262 2142 8 290 375
01 2130 00 1950 2390 130 2130 120 110 60 （60-1） 33 33 2235 2025 18 130 1163
01 2560 01 2425 2695 63 2560 54 54 36 36 17.5 17.5 2620 2500 8 335 412
01 3031 00 2914 3198 90 3031 77 77 48 48 22 22 3104 2958 10 318 724

Family 02

Click here to add your own text

Bearing No. Slewing Bearing Dimension Fixing holes Gear Data
Product Details ID OD H DL OH IH No Ni SHO SHI Lo Li m z  Weight
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
02 0245 00 174.5 300 40 245 32 32 20 20 11 11 280 210 3 60 10
02 0308 01 217 385 55 308 45 45 24 24 13.5 13.5 358 259 4 56 25
02 0422 00 316 515 54 422 50 50 20 20 17.5 17.5 476 368 5 64 47
02 0520 00 403 610 68 520 54 60 24 24 17.5 17.5 574 466 6 68 68
02 0626 01 493 740 76 626 66 66 24 24 22 22 692 560 6 83 106
02 0720 02 578 835 82 720 66 72 30 30 22 22 786 654 8 73 130
02 0820 00 674 935 82 820 66 72 32 32 22 22 886 754 8 85 164
02 0935 00 794 1050 82 935 66 72 36 36 22 22 1000 870 8 100 171
02 1050 00 882 1170 98 1050 80 88 40 40 22 22 1125 975 10 89 261
02 1225 00 1052 1360 98 1225 80 88 40 40 26 26 1303 1147 10 106 326
02 1295 00 1162 1390 63 1295 54 54 24 24 17.5 17.5 1354 1236 8 146 180
02 1415 00 1215 1560 110 1415 90 100 48 48 26 26 1500 1330 12 102 498
02 1565 02 1422 1676 78 1565 62 70 36 36 17.5 17.5 1636 1506 10 144 281
02 1715 00 1501 1870 110 1715 90 100 48 48 30 30 1804 1626 14 108 615
02 1805 02 1662 1916 78 1805 62 70 24 24 17.6 17.5 1876 1746 10 168 329
02 2040 00 1906 2130 68 2040 110 120 36 36 17.5 17.5 2090 1985 8 239 305
02 2022 00 1780 2195 130 2022 59 59 48 48 33 33 2123 1921 16 112 1066
02 2202 00 2066 2298 70 2202 62 62 36 36 17.5 17.5 2262 2142 8 259 361
02 2560 00 2426 2695 63 2560 54 54 36 36 17.5 17.5 2620 2500 8 304 432
02 2618 00 2362 2785 130 2618 110 120 72 72 33 33 2720 2517 18 132 1394
02 3074 01 2914 3190 90 3074 80 80 48 48 22 22 3150 2998 8 366 754

Family 03

Click here to add your own text

Bearing No. Slewing Bearing Dimension Fixing holes Gear Data
Product Details ID OD H DL OH IH No Ni SHO SHI Lo Li m z  Weight
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
03 0181 07 125 234 25 181 25 25 24 (20-1) 11 11 214 144.5 – – 5
03 0217 00 150 290 41.5 217 34 37 16 (16-1) 14 M12 265 175 – – 14
03 0260 00 190 329 45 260 44 44 16 16 14 14 305 215 – – 18
03 0342 05 265 440 50 342 44 44 16 16 17.5 17.5 390 295 – – 30
03 0360 00 265 455 71 360 63 63 24 (24-1) 17.5 17.5 420 300 – – 46
03 0402 00 335 475 45 402 44 44 24 24 14 14 450 360 – – 27
03 0525 01 424 626 72 525 63 63 24 24 22 22 590 460 – – 73
03 0600 02 487 712 72 600 63 63 24 24 22 22 668 531 – – 93
03 0785 00 670 900 86 785 77 77 36 （36-1） 22 22 860 710 – – 150
03 0980 02 845 1130 100 980 90 90 36 (36-1) 26 26 1070 890 – – 286

Family 31

Click here to add your own text

Bearing No. Slewing Bearing Dimension Fixing holes Gear Data
Product Details ID OD H DL OH IH No Ni SHO SHI Lo Li m z  Weight
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
31 0411 01 342 505 56 411 46 46 20 24 M12 14 455 368 5 99 33
31 0541 01 472 640 56 541 46 46 28 32 M12 14 585 498 6 105 45
31 0641 01 572 742 56 641 46 46 32 36 M12 14 685 598 6 122 56
31 0741 01 672 840 56 741 46 46 36 40 M12 14 785 698 6 133 61
31 0841 01 772 950 56 841 46 46 36 40 M12 14 885 798 8 117 74
31 0941 01 872 1046 56 941 46 46 40 44 M12 14 985 898 8 129 78
31 1091 01 1022 1198 56 1091 46 46 44 48 M12 14 1135 1048 8 148 95

Family 32

Click here to add your own text

Bearing No. Slewing Bearing Dimension Fixing holes Gear Data
Product Details ID OD H DL OH IH No Ni SHO SHI Lo Li m z  Weight
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
32 0411 01 325 486 56 411 46 46 24 24 14 M12 460 375 5 67 31
32 0541 01 445 616 56 541 46 46 32 32 14 M12 590 505 6 76 45
32 0641 01 546 716 56 641 46 46 36 36 14 M12 690 605 6 93 55
32 0741 01 649 816 56 741 46 46 40 40 14 M12 790 705 6 110 56
32 0841 01 736 916 56 841 46 46 40 40 14 M12 890 805 8 94 70
32 0941 01 840 1016 56 941 46 46 44 44 14 M12 990 905 8 108 76
32 1091 01 986 1166 56 1091 46 46 48 48 14 M12 1140 1055 8 125 96

Family 33

Click here to add your own text

Bearing No. Slewing Bearing Dimension Fixing holes Gear Data
Product Details ID OD H DL OH IH No Ni SHO SHI Lo Li m z  Weight
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
33 0411 01 342 486 56 411 46 46 24 24 14 14 460 368 – – 30
33 0541 01 472 616 56 541 46 46 32 32 14 14 590 498 – – 40
33 0641 01 572 716 56 641 46 46 36 36 14 14 690 598 – – 45
33 0741 01 672 816 56 741 46 46 40 40 14 14 790 698 – – 55
33 0841 01 772 916 56 841 46 46 40 40 14 14 890 798 – – 62
33 0941 01 872 1016 56 941 46 46 44 44 14 14 990 898 – – 67
33 1091 01 1022 1166 56 1091 46 46 48 48 14 14 1140 1048 – – 81
